Rainier
Retractable Awning
The narrow-space specialist — fits where standard arms can't
Starting from $4,600
Based on size and fabric selection · Free in-home estimate
Available projection
Frame color
Built for Pacific Northwest living
Everything you need.
Nothing you don't.
One-touch motorized control

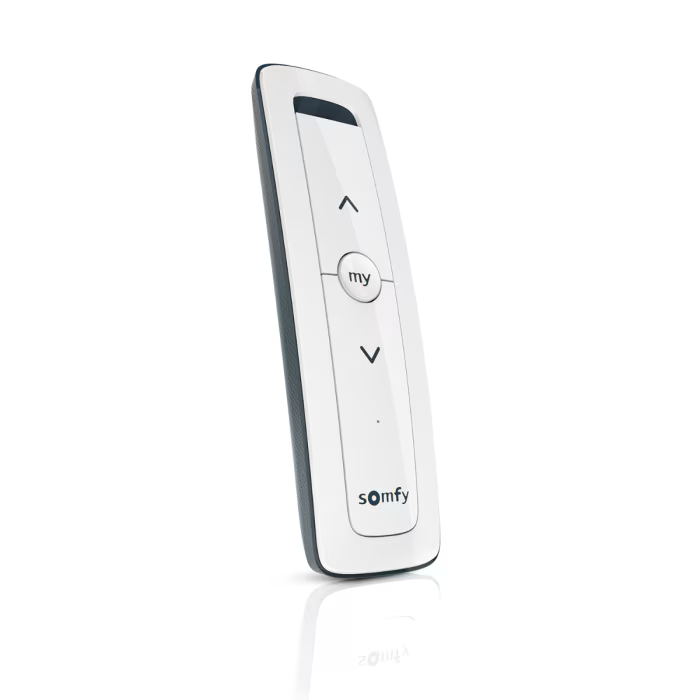

Somfy motor with remote, wall switch, or smartphone app. Wind sensor retracts automatically in strong gusts.
Cross-arm geometry
Handles widths from 4'0" — half the minimum of standard lateral-arm awnings. The only model that fits the tightest spaces.
Decade-strong warranty
10-year frame · 10-year mechanism · 5-year fabric. Solid coverage across the structural elements that actually fail.
Sunbrella® fabric
5-year fade guarantee. Mold, mildew, and UV resistant — engineered for Seattle rain and sun. 100+ colors and patterns.
Fully custom built
Every Rainier is made to your exact dimensions, color, and mounting requirements. Configurations from 4'0" to 40' wide.
Professional installation included
Our own trained crews — not subcontractors. Typical install in 1 day with full cleanup.
Powered by Sunbrella®

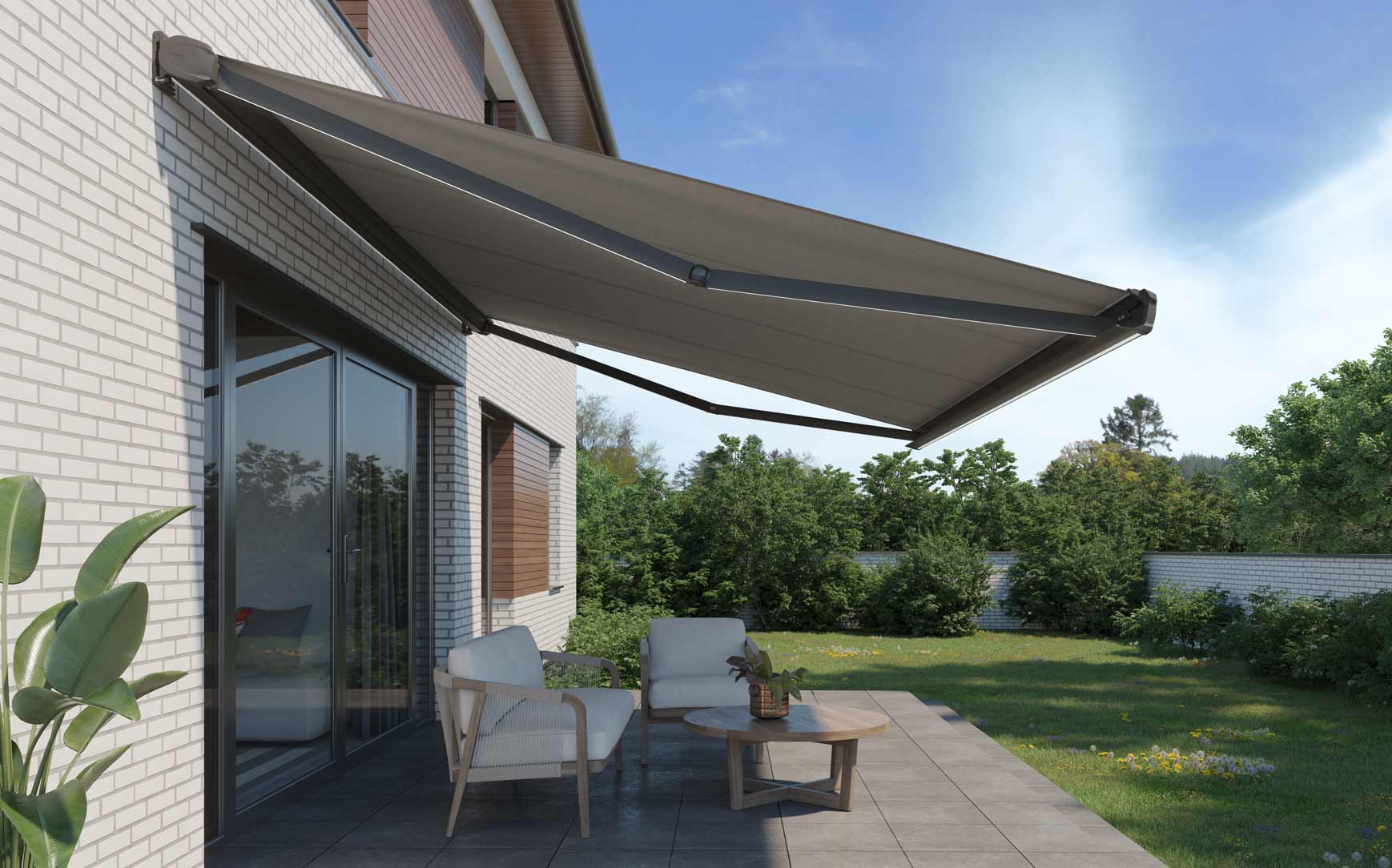

See your awning
on your home
Upload a photo of your house and try different awning styles and Sunbrella® fabric colors before you commit. Free, no account needed.
Try the Shade Studio →

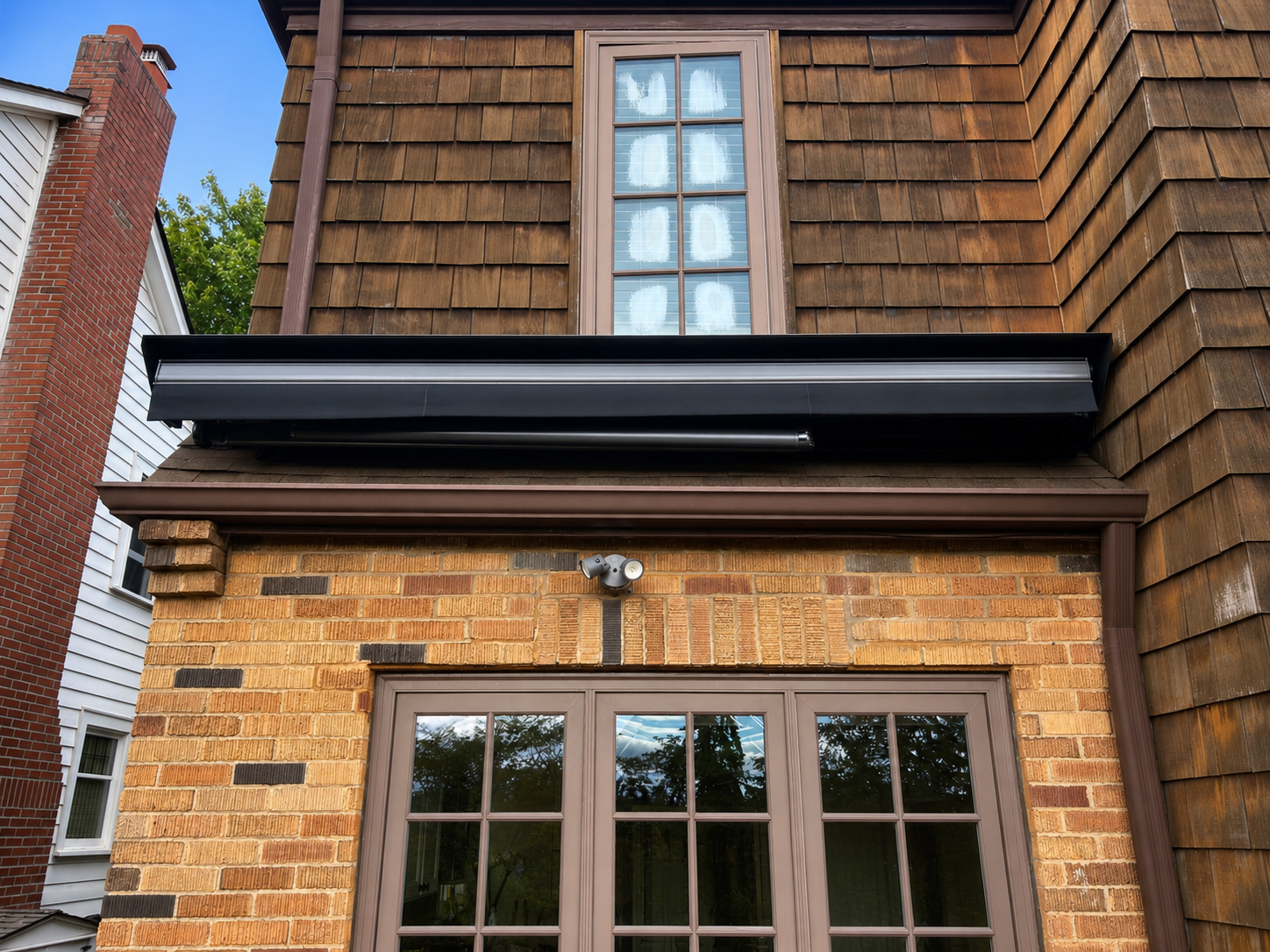

Rainier exclusive
The arm that fits
where others can't.
Most retractable awnings need at least 6'7" of wall to install. The Rainier's cross-arm geometry folds smaller — making it the only model in our lineup that handles bay windows, narrow patios, and tight side yards.
Rainier cross-arm
4'0" minimum width · 9-cable ART belt · 60,000 cycles · 900+ lbs spring tension
Standard lateral arm
6'7" minimum width · standard ART · most homes won't have a problem, but narrow ones will

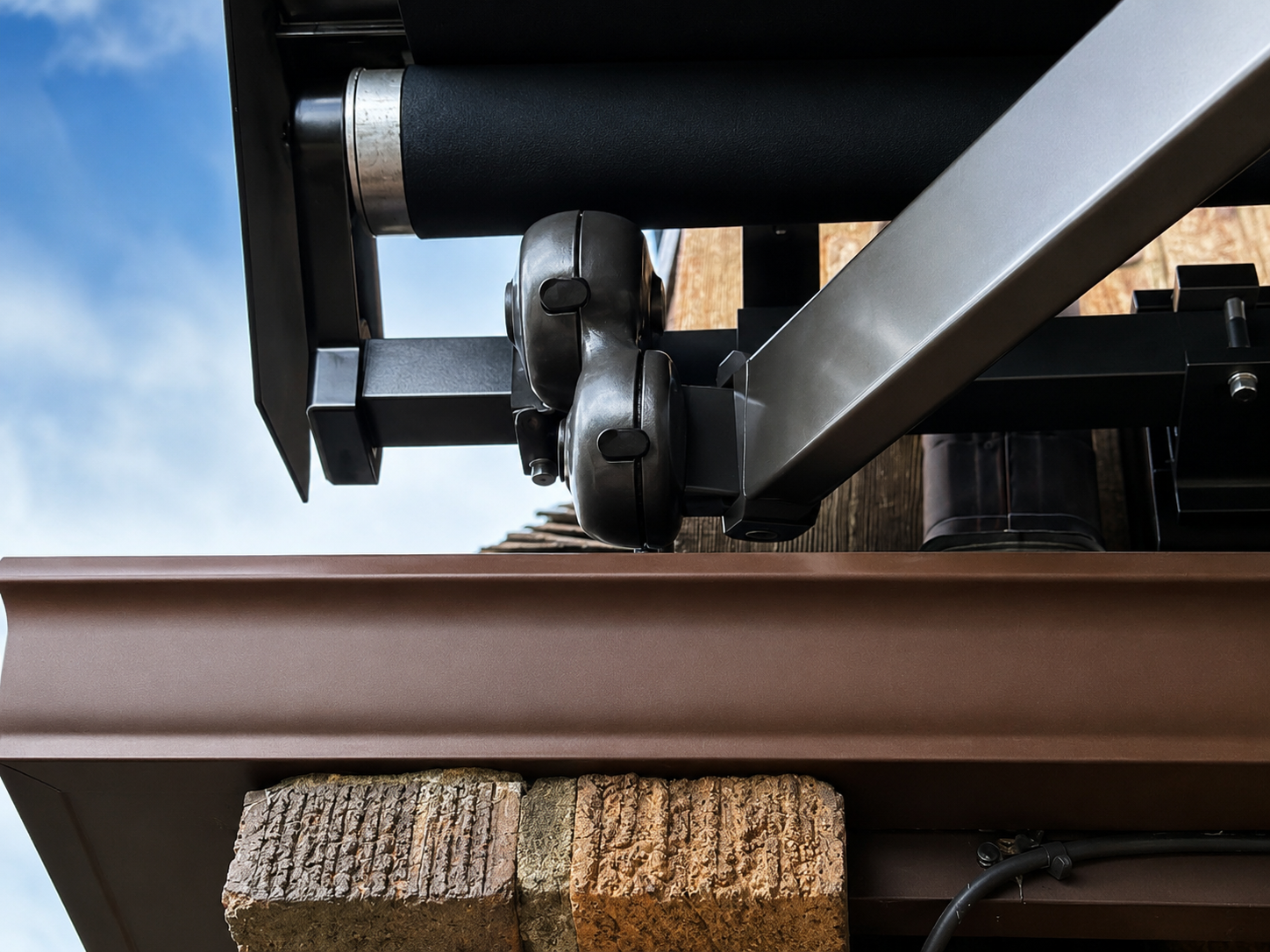

Cross-arm geometry compresses tighter when retracted — fits walls as narrow as 4'0"
9-cable ART belt tested to 60,000 cycles — opening and closing twice a day for over 80 years
900+ lbs of spring tension keeps the fabric tight even at narrow widths
Same Somfy motor and Sunbrella fabric as the rest of our retractable lineup
Ideal for bay windows, narrow side patios, condo decks, townhome balconies
Technical specifications
| Width range | 4'0" – 40'0" in ¼" increments |
| One-piece max width | 26' |
| Projection | 5'0" – 11'6" |
| Arm technology | 9-cable ART belt · 60,000 cycles tested |
| Spring tension | 900+ lbs |
| Motor | Somfy RTS (standard) · Manual operation available |
| Control options | Remote, wall switch, Somfy app, smart home |
| Fabric | Sunbrella® — 100+ colors and patterns |
| Frame finish | Powder-coated aluminum · 3 colors (White, Camel, Spartan Bronze) |
| UV blockage | Up to 98% when extended |
| Wind resistance | Up to 35 mph extended · Auto retract recommended at 22 mph |
| Warranty | 10yr frame · 10yr mechanism · 5yr fabric |
| Protection | Diamond & Emerald Protection optional |
| Lead time | 4–6 weeks from order to installation |
Three ways to install
Built around your home,
not the other way around.
01

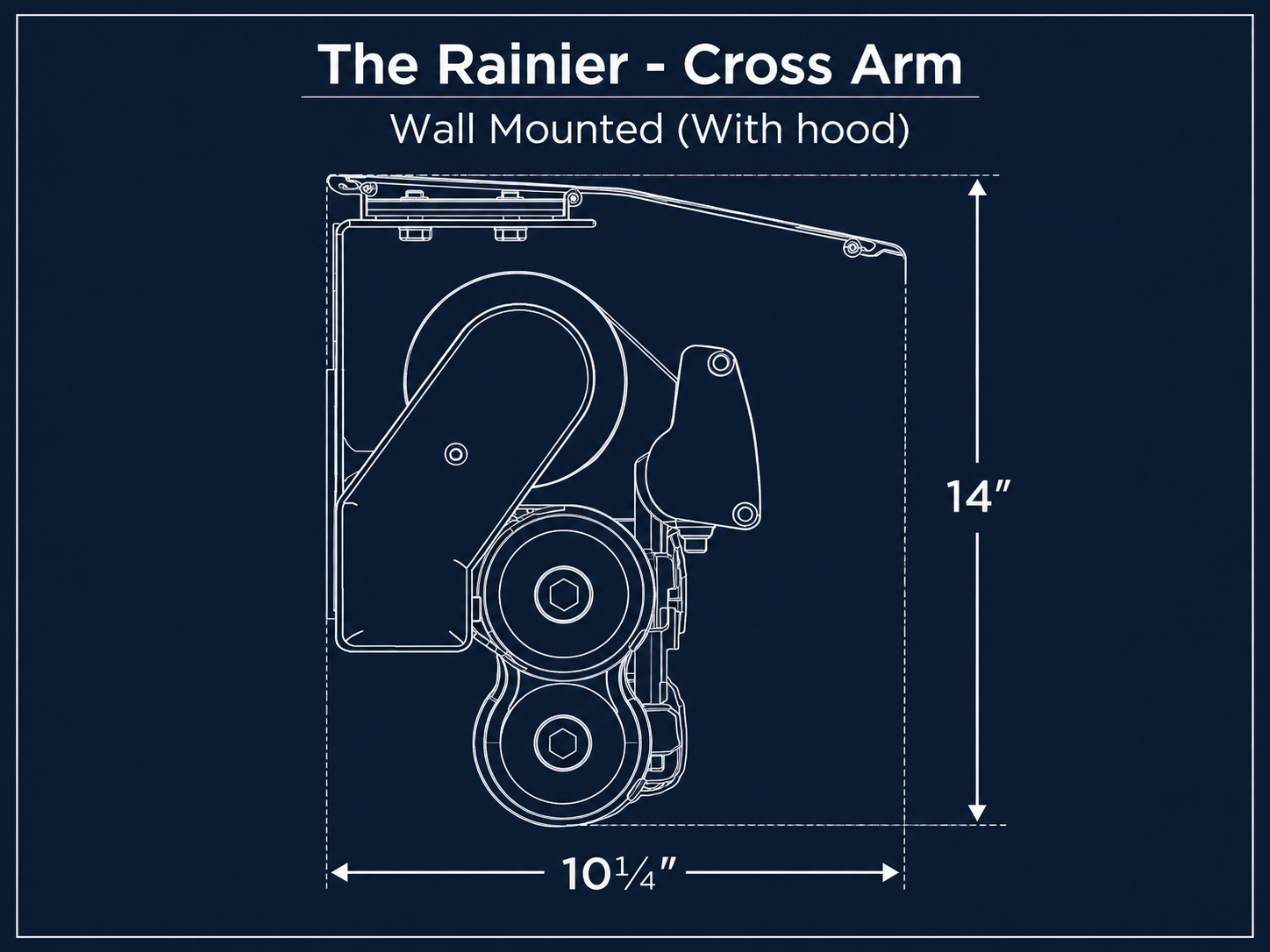

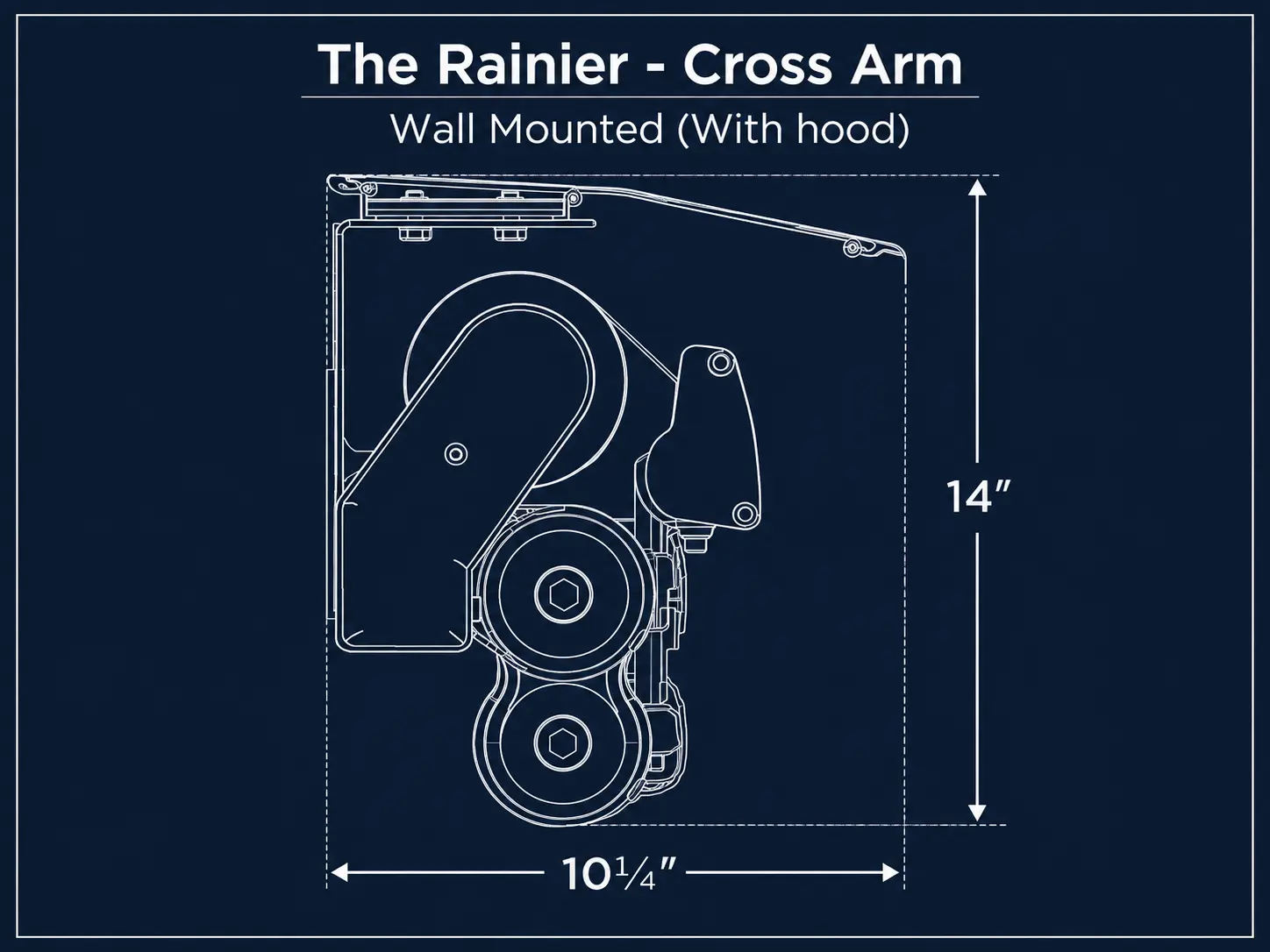

Wall mounted
The most common installation type. The bracket attaches directly to an exterior wall, typically above a door, window, or sliding glass door. Ideal for narrow walls where the cross-arm Rainier really shines — bay windows, side yards, condo balconies.
02

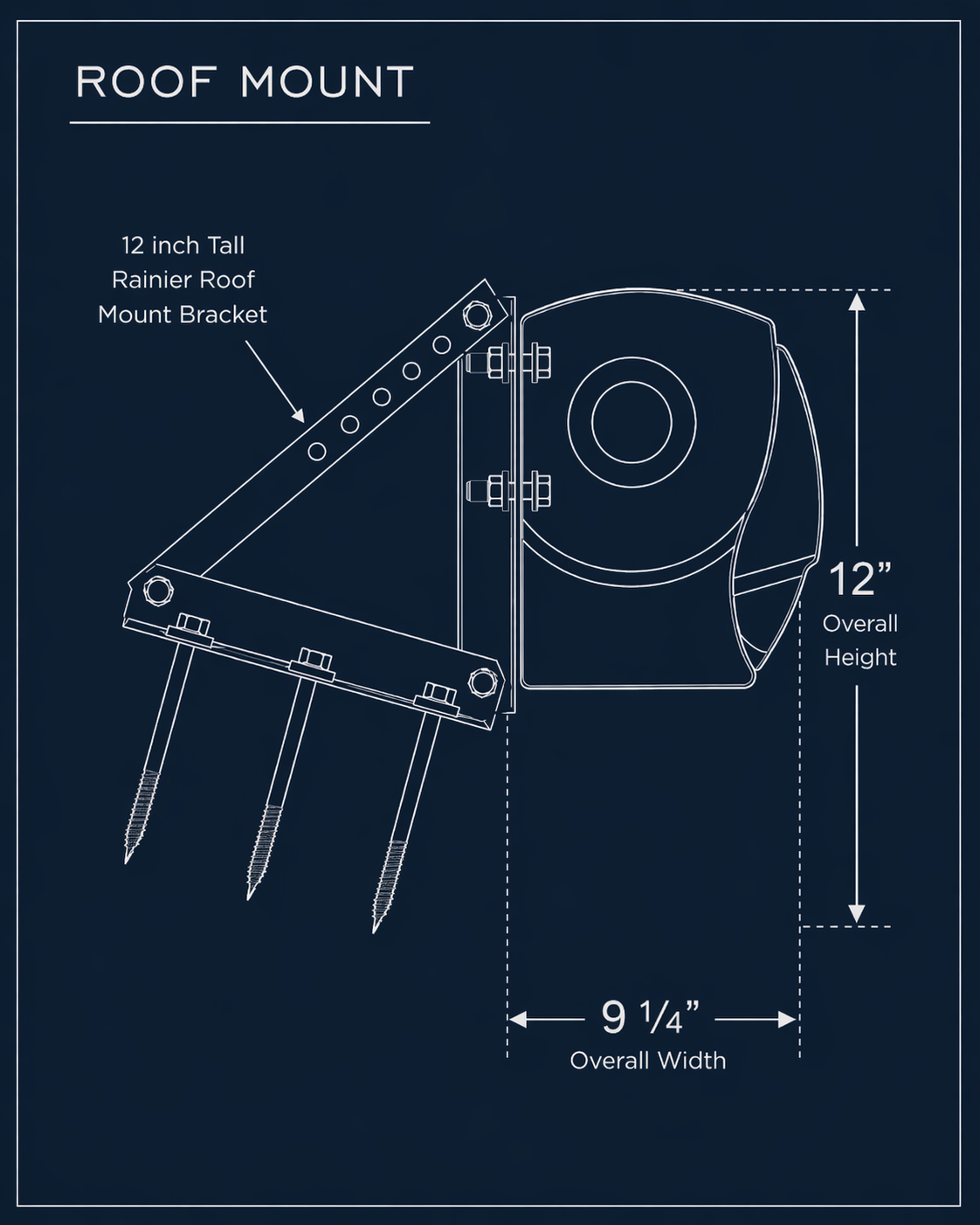

Roof mounted
Used when wall space is limited or when the roofline provides the best angle for coverage. Precision flashing and weatherproof sealing refined over 125 years of Pacific Northwest installs.
03

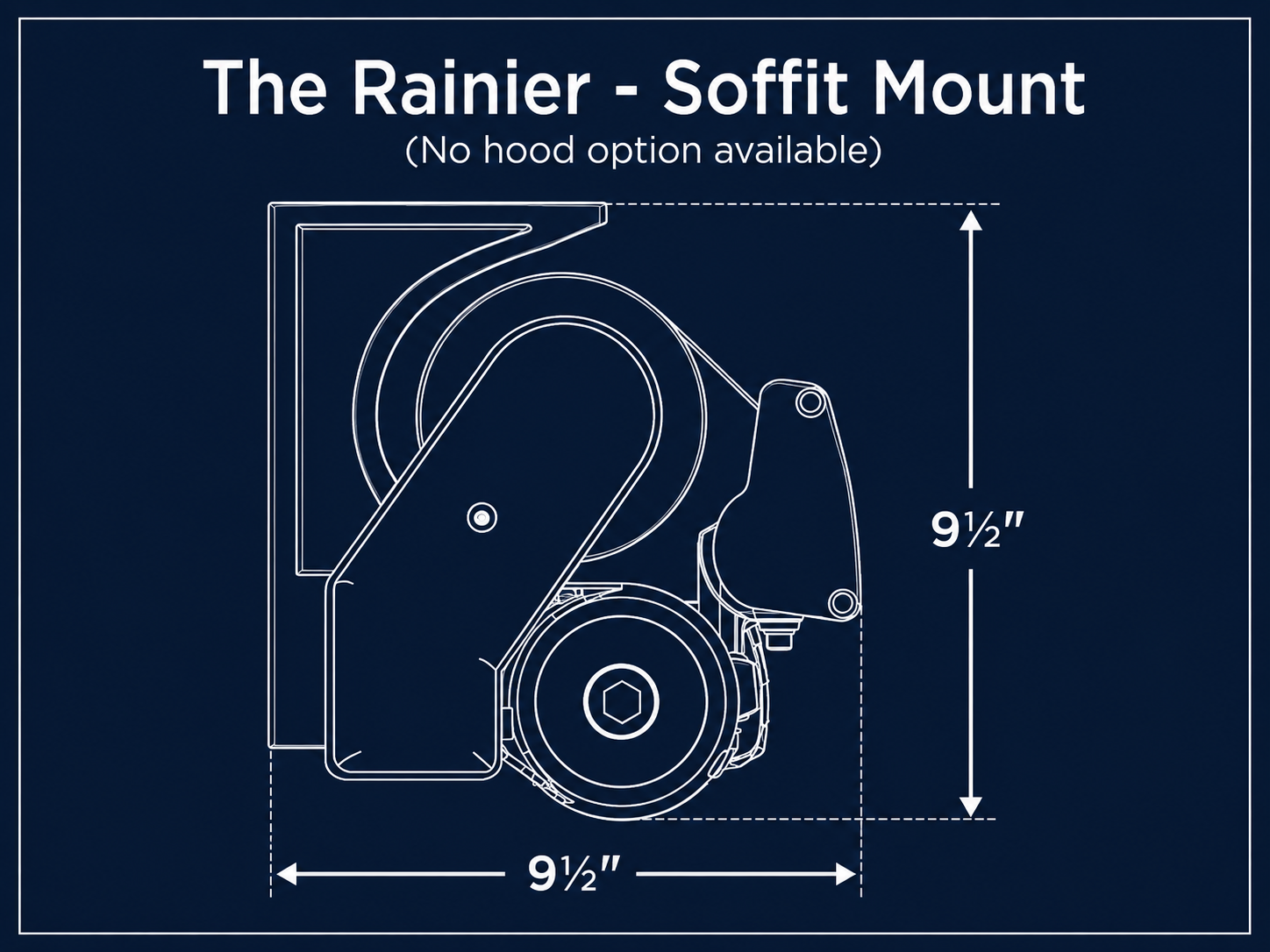

Soffit mounted
Brackets attach to the underside of an existing soffit or overhang. A great option for homes with deep eaves or covered porches. Provides a seamless look that appears built into the home.
Not sure if your space is wide enough?
Our consultants measure your wall and confirm what'll fit — no obligation.
Free · No obligation · We come to you
Schedule your free
in-home consultation
One of our awning specialists visits your home to measure, recommend the right system, and answer every question. No pressure — just expertise.
- Seattle's oldest shade company — established 1896
- Custom manufactured to your exact specifications
- Our own trained installers — fully licensed & insured
- Free in-home consultation — we come to you
- 10yr frame · 10yr mechanism · 5yr fabric
- WA Contractor Reg# RAINIS*770JK
Book your consultation
Select a date and time that works for you
Customer stories
What Seattle homeowners
are saying
★★★★★
Heather P. — Edmonds, WA
"Our patio is awkwardly narrow — only about 5 feet of usable wall. The Rainier was the only awning that would fit. Two summers in and it's been flawless. The crew worked clean and got it up in a single afternoon."
★★★★★
Marcus T. — Capitol Hill, Seattle
"Three other awning companies told me my bay window space was too narrow. Rainier measured, said the cross-arm Rainier would fit, and it did. Looks like it was always meant to be there."
★★★★★
Jeanne Ballot — Pacific Northwest
"Another amazing experience with Rainier Shade. True professionals who go above and beyond every time. Thank you for helping to keep my house cooler in summer and warmer in winter!"
★★★★★
Daniel R. — Kirkland, WA
"Townhome balcony, very limited width. The Rainier was the only retractable that would work. Installers were courteous, professional, and finished in a few hours. Highly recommend."
Contractor & trade resources
Architects, contractors, and trade partners can request detailed installation guides, specification sheets, and measuring guides for their projects.
Request documentation →
